1. Flexible Dual-bend performance (3D-Bending).
2. Free-Cutting and Fast-Assembling solution.
3. Linear lighting performance.
4. Dimmable with PWM signal.
5. Only one Bin, SDCM<3, or SDCM<5 available.
6. IP-67 waterproof for indoor and outdoor.
7. >50,000 hours Lifetime,3 year outdoor 5years indoor warranty.

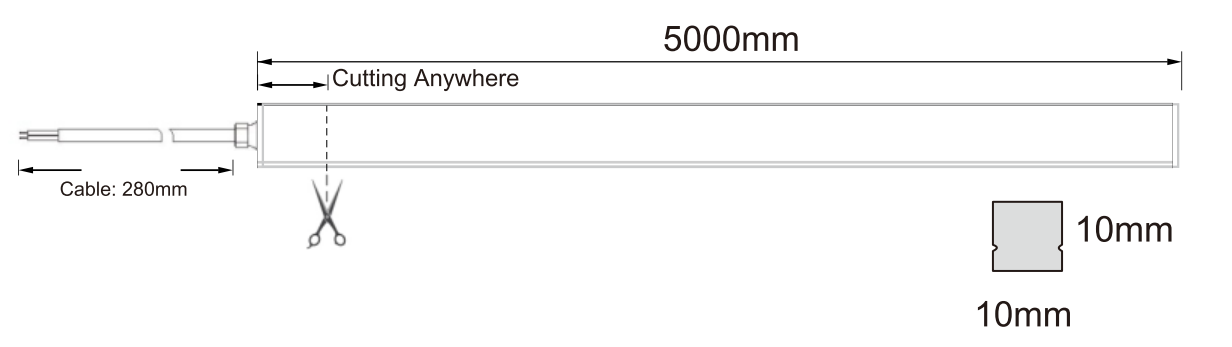

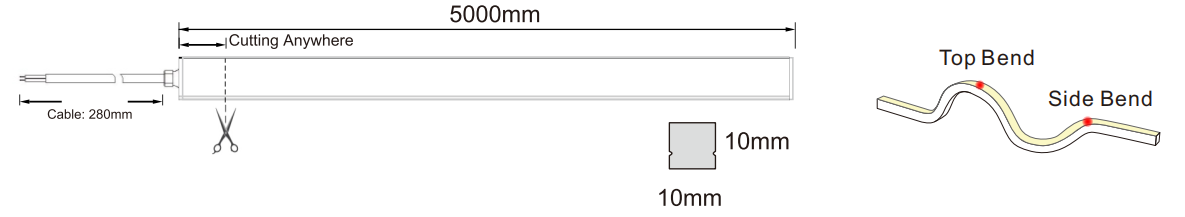

Product Dimensions
Product Parameters
| Part No. | CCT | Power/m | Voltage | LEDs/m | CRI | Dimension | lm/W | LM/m | IP Rate |
| HJ-NEON 1010-3D-8W-R90-24V-CT | 2700K | 8W | 24V | 240 | >90 | 10*10mm | 50 | 398 | IP67 |
| HJ-NEON 1010-3D-8W-R90-24V-CT | 3000K | 8W | 24V | 240 | >90 | 10*10mm | 51 | 408 | IP67 |
| HJ-NEON 1010-3D-8W-R90-24V-CT | 4000K | 8W | 24V | 240 | >90 | 10*10mm | 54 | 428 | IP67 |
| HJ-NEON 1010-3D-8W-R90-24V-CT | 5000K | 8W | 24V | 240 | >90 | 10*10mm | 56 | 448 | IP67 |
| HJ-NEON 1010-3D-8W-R90-24V-CT | 6500K | 8W | 24V | 240 | >90 | 10*10mm | 55 | 440 | IP67 |
Optical parameters
| LED Type: | SMD2216 |
| Color Rendering Index: | 2700/3000/4000/5000/6500K |
| CCT Range: | >90 |
| Irradiation Angle: | 120° |
| Light Efficiency: | 50~55 Lm/w |
| Lumen Output/meter: | 398~440 Lm/m |
| Energy Grade: | N/A |
Electric parameters
| Input Current/M: | 0.33A/m |
| Input Voltage: | DC24V |
| Power/M: | 8W/m |
| ESD Protection: | 1000V (ESD) |
| LED Density: | 40 LEDs/m |
| Section Size: | 10×10mm (1010) |
| Cut Unit: | 1 LED (Free Cut) |

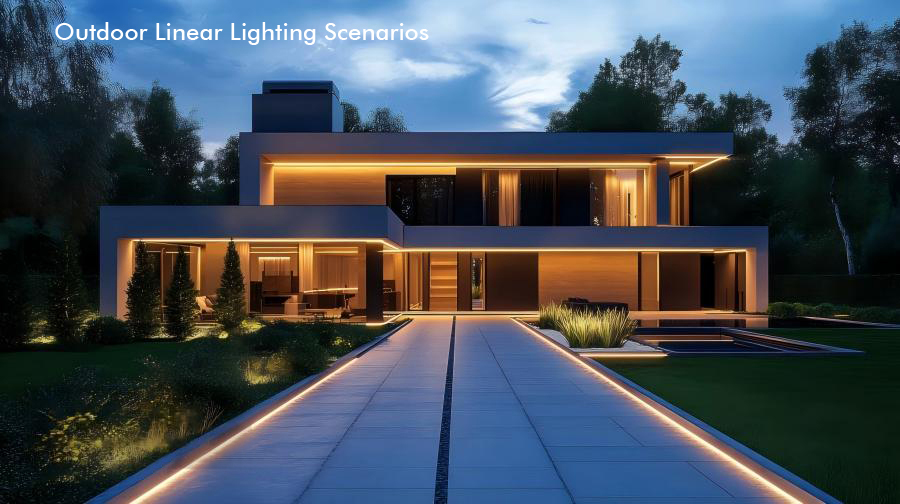

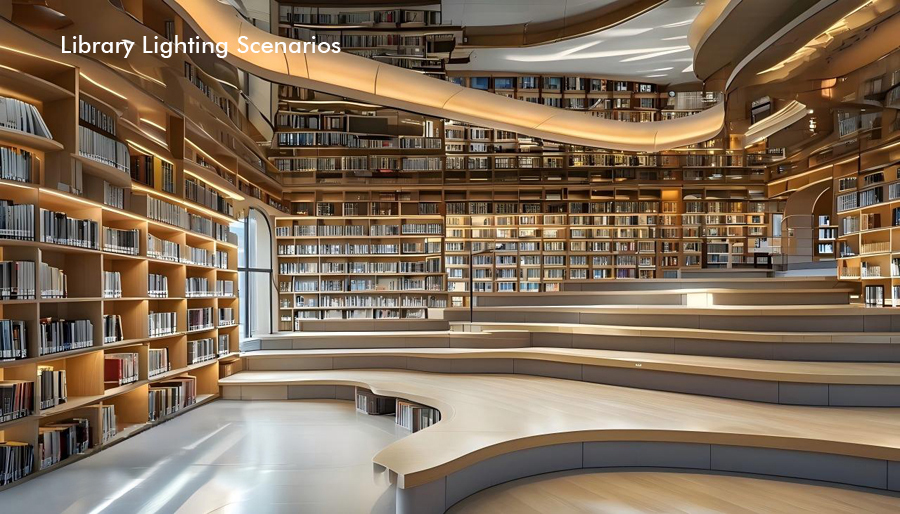

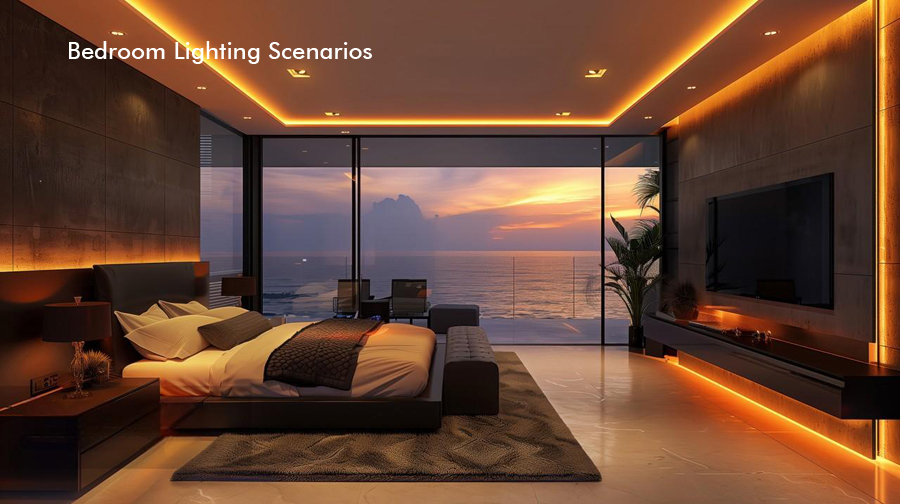

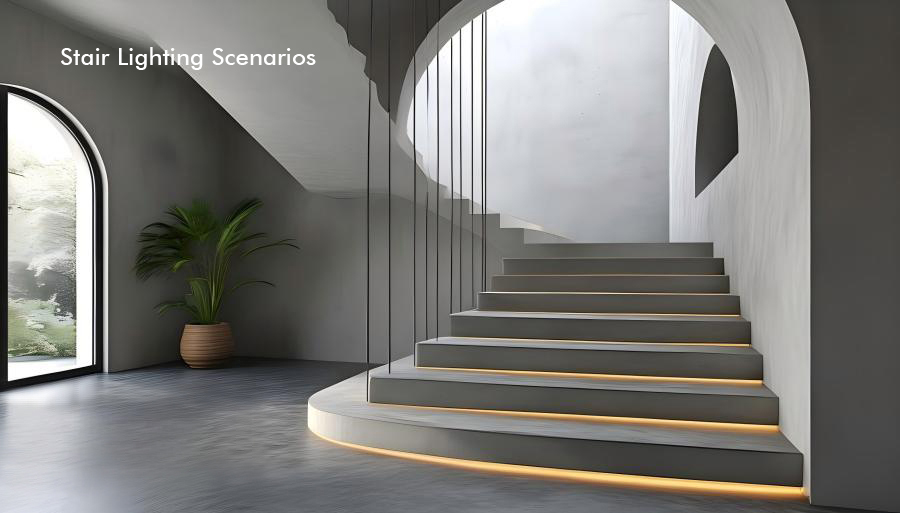

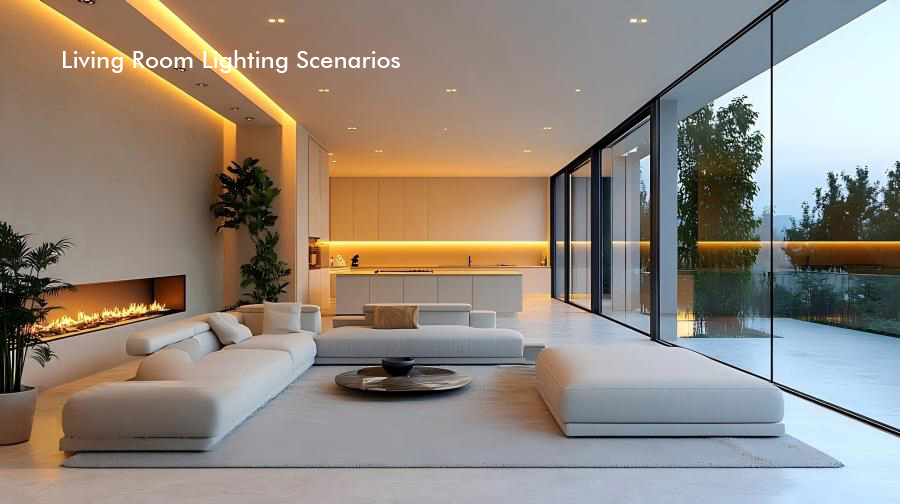

Application Scenarios
FAQ

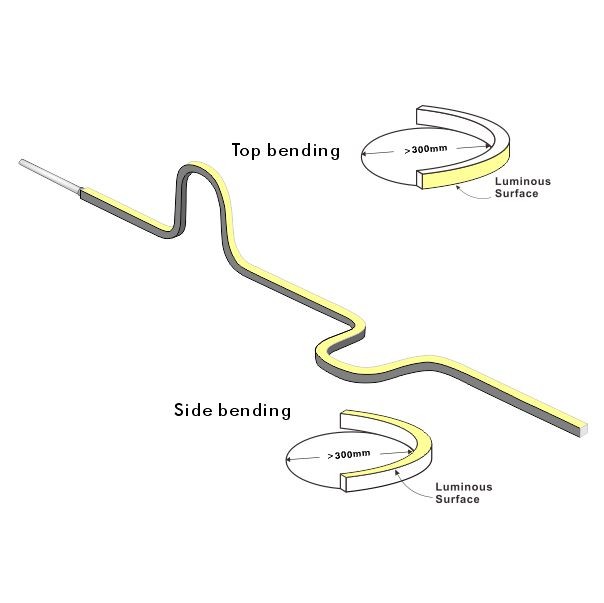

Q: What is the difference between Top Bending and Side Bending?
A: Top bending means the neon flex curves along the light-emitting surface (like an arch), ideal for vertical shapes. Side bending means it curves along the side edge, perfect for horizontal waves and complex 3D logos. Our 1010 series supports both.
Q: Can I cut this LED neon flex to specific lengths?
A: Yes. This is a Free Cut model. You can cut it every 1 LED (at the marked cutting points) without damaging the rest of the strip, making it highly customizable for projects.
Q: Is this neon light waterproof? Can it be used outdoors?
A: Absolutely. It has an IP67 rating. The silicone housing is dust-tight and waterproof, suitable for outdoor architectural outlines, gardens, and poolsides (non-immersed).
Q: What is the CRI? Do the colors look natural?
A: The CRI is >90, which means it renders colors very accurately, similar to natural light. This is crucial for retail shops, art galleries, and high-end interiors.
Q: How do I install the 1010 neon strip?
A: It is very flexible. You can use aluminum mounting channels for straight lines or brackets for curves. The 10x10mm compact size fits most standard profiles.
Q: Do you provide connectors and accessories?
A: Yes, we supply end caps, and mounting clips. You can purchase them together with the neon flex to ensure a seamless installation.
